Tasks view

The Tasks view displays tasks that you add manually. You can associate a task with a resource in the Workbench, but this is not required.

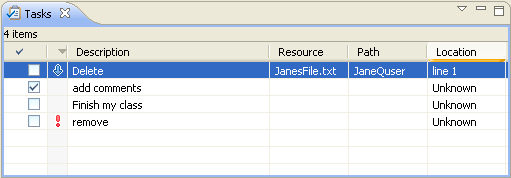

Picture of the Tasks view with two dummy tasks added to it.

By default, the Tasks view is included in the Resources perspective. To add it to the current perspective, click Window > Show View > Other... > General > Tasks.

The following icons are used by the Tasks view:

Icon	Description
	High priority task
	Low priority task
	Completed task
	Add task
	Delete
	Filter

The first column indicates whether the task is completed. Completed tasks are flagged with a check mark, which you add manually.

The second column indicates whether the task is high, normal, or low priority.

The Description column contains a description of the line item. You can edit the description of user-defined tasks by selecting Properties from the context menu.

The Resource and Path columns provide the name and location of the resource associated with each line item.

The Location column indicates the line number of the line item within its associated resource.

Toolbar

The toolbar of the Tasks view includes the following buttons.

Add task: Manually add a "to do" item to the Tasks view.
Delete: Delete the selected line item.
Filter: Filter the view according to the type of item.

Menus

Click the icon at the left end of the view's title bar to open a menu of items generic to all views. Click the upside-down triangle icon to open a menu of items specific to the Tasks view. Right-click inside the view to open a context menu.
