Compare/Patch

General options

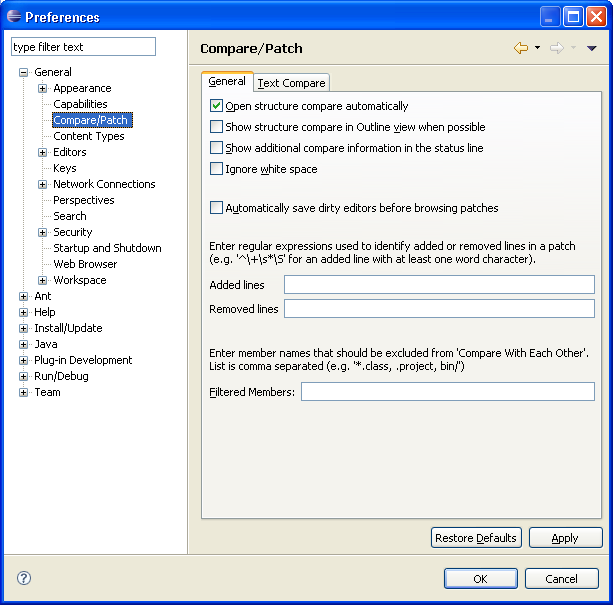

Option	Description	Default
Open structure compare automatically	This option controls whether a structure compare is automatically performed whenever a content compare is done. Turn this option off if you don't want to see the structural differences.	On
Show structure compare in Outline view when possible	If this option is on, structure compare will be displayed in the Outline view whenever it is possible.	Off
Show additional compare information in the status line	If this option is on, additional information about a change is shown in the status line. Turn this option on if you are interested in additional information about a change.	Off
Ignore white space	This option controls whether or not whitespace change are shown in the compare viewer. Turn this option on if you want to see changes in whitespace.	Off
Automatically save dirty editors before browsing patches	This option controls whether any unsaved changes are automatically saved before a patch is applied. Turn this option on if you want to save changes automatically.	Off
Filtered Members	This option allows you to filter members that should be excluded from 'Compare With Each Other'. Note: The names in the list must be separated by a comma.

Option

Description

Default

Open structure compare automatically

This option controls whether a structure compare is automatically performed whenever a content compare is done. Turn this option off if you don't want to see the structural differences.

Show structure compare in Outline view when possible

If this option is on, structure compare will be displayed in the Outline view whenever it is possible.

Off

Show additional compare information in the status line

If this option is on, additional information about a change is shown in
the status line. Turn this option on if you are interested in additional information about a change.

Off

Ignore white space

This option controls whether or not whitespace change are shown in the compare viewer. Turn this option on if you want to see changes in whitespace.

Off

Automatically save dirty editors before browsing patches

This option controls whether any unsaved changes are automatically saved before a patch is applied. Turn this option on if you want to save changes automatically.

Off

Filtered Members

This option allows you to filter members that should be excluded from 'Compare With Each Other'.

Note: The names in the list must be separated by a comma.

Text Compare options

Option	Description	Default
Synchronize scrolling between panes in compare viewers	The two comparison viewers will "lock scroll" along with one another in order to keep identical and corresponding portions of the code in each pane side-by-side. Turn this option off if you do not want the compare viewers to lock scroll.	On
Initially show ancestor pane	Sometimes you want to compare two versions of a resource with the previous version from which they were both derived. This is called their common ancestor, and it appears in its own comparison pane during a three way compare. Turn this option on if you want the ancestor pane to always appear at the start of a comparison.	Off
Show pseudo conflicts	Displays pseudo conflicts, which occur when two developers make the same change (for example, both add or remove the exact same line of code or comment). Turn this option on if you want pseudo conflicts to appear in compare browsers.	Off
Connect ranges with single line	Controls whether differing ranges are visually connected by a single line or a range delimited by two lines.	On
Highlight individual changes	Controls whether the individual changes inside conflicts are highlighted.	On
When the end/beginning is reached while navigating an element	Use this option to configure what occurs when the end/beginning is reached while navigating an element. Prompt: If this option is on and you selected to compare a single element you will be asked whether you want to go to the beginning/end of the element after the end/beginning is reached. If you are comparing two or more elements you will be asked whether you want to go to the beginning/end of the current element or to go to the next/previous element. Moreover, if you choose to remember your decision, this option will be changed to one of the below respectively. Loop back to the beginning/end: When this option is on, the selection will me moved back to the beginning/end after you reach the end/beginning of an element. Go to the next/previous element: If you are comparing two or more elements and this option is on after you reach the end/beginning of an element the next/previous element will be opened.	Prompt

Option

Description

Default

Synchronize scrolling between panes in compare viewers

The two comparison viewers will "lock scroll" along with one another in order to keep identical and corresponding portions of the code in each pane side-by-side. Turn this option off if you do not want the compare viewers to lock scroll.

Initially show ancestor pane

Sometimes you want to compare two versions of a resource with the previous version from which they were both derived. This is called their common ancestor, and it appears in its own comparison pane during a three way compare. Turn this option on if you want the ancestor pane to always appear at the start of a comparison.

Off

Show pseudo conflicts

Displays pseudo conflicts, which occur when two developers make the same change (for example, both add or remove the exact same line of code or comment). Turn this option on if you want pseudo conflicts to appear in compare browsers.

Off

Connect ranges with single line

Controls whether differing ranges are visually connected by a single line or a range delimited by two lines.

Highlight individual changes

Controls whether the individual changes inside conflicts are highlighted.

When the end/beginning is reached while navigating an element

Use this option to configure what occurs when the end/beginning is reached while navigating an element.

Prompt: If this option is on and you selected to compare a single element you will be asked whether you want to go to the beginning/end of the element after the end/beginning is reached. If you are comparing two or more elements you will be asked whether you want to go to the beginning/end of the current element or to go to the next/previous element. Moreover, if you choose to remember your decision, this option will be changed to one of the below respectively.
Loop back to the beginning/end: When this option is on, the selection will me moved back to the beginning/end after you reach the end/beginning of an element.
Go to the next/previous element: If you are comparing two or more elements and this option is on after you reach the end/beginning of an element the next/previous element will be opened.

Prompt

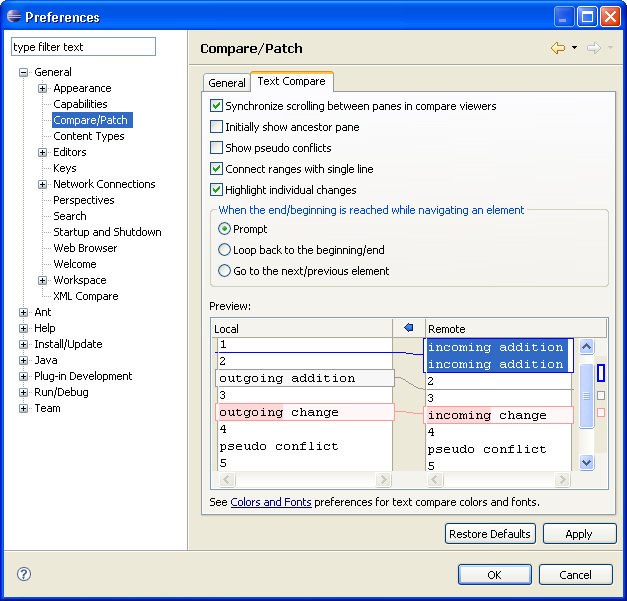

Here is what the Compare preference page looks like:

Compare preference page (Text Compare tab)
